Analytical balances are indispensable tools in laboratories that require precise measurement of mass. Renowned for their exceptional sensitivity and accuracy, these instruments are foundational to quantitative analysis in sectors such as pharmaceuticals, chemical manufacturing, environmental science, and academic research. This guide will explain what analytical balances are, how they work, their key features, application areas, best practices for use, troubleshooting, regulatory considerations, and how to keep them performing at their best.
For a comprehensive overview of selecting laboratory equipment, see our Ultimate Lab Equipment Buying Guide.
What is an Analytical Balance?
An analytical balance is a highly sensitive laboratory instrument designed to measure mass with extremely high precision—often to the nearest 0.1 milligram (0.0001 g) or even finer. This high readability allows detection of minute differences in mass, making analytical balances vital for applications where accuracy is critical. To safeguard against environmental factors such as air currents and dust, analytical balances are equipped with a draft shield or weighing chamber.
How Does an Analytical Balance Work?
Analytical balances operate using the principle of electromagnetic force compensation. When a sample is placed on the weighing pan, the balance detects the gravitational force and generates an opposing electromagnetic force to achieve equilibrium. The instrument then translates this force into a digital mass reading. The main components of an analytical balance include:
- Weighing pan: Holds the sample or container.
- Draft shield: Encloses the weighing area to minimize interference from air movement and dust.
- Load cell or weighing mechanism: Senses the applied force.
- Digital display: Shows the measured mass.
- Leveling feet and bubble indicator: Ensure the balance is perfectly level for accurate measurements.
Key Features and Specifications
Analytical balances are defined by several important specifications:
- Readability: The smallest increment of mass the balance can display, typically 0.1 mg (0.0001 g) or finer.
- Capacity: The maximum mass the balance can accurately measure, usually ranging from 100 g to 520 g.
- Accuracy: How close the measurement is to the true value.
- Precision: How consistently the balance can reproduce the same measurement.
- Repeatability: The ability to display the same value for repeated measurements of the same object under the same conditions.
- Stabilization time: The time required for the balance to produce a stable reading, often a few seconds.
- Minimum weight: The lowest mass that can be weighed with acceptable accuracy, determined by the balance’s repeatability and environmental factors.
- Draft shield: Essential for protecting sensitive measurements from air currents and dust.
- Anti-static and vibration control: Features that minimize errors caused by static electricity or vibrations.
- Advanced features (on some models): Internal calibration, electronic levelling, touchscreen interfaces, data connectivity (USB, Ethernet), and automation options.

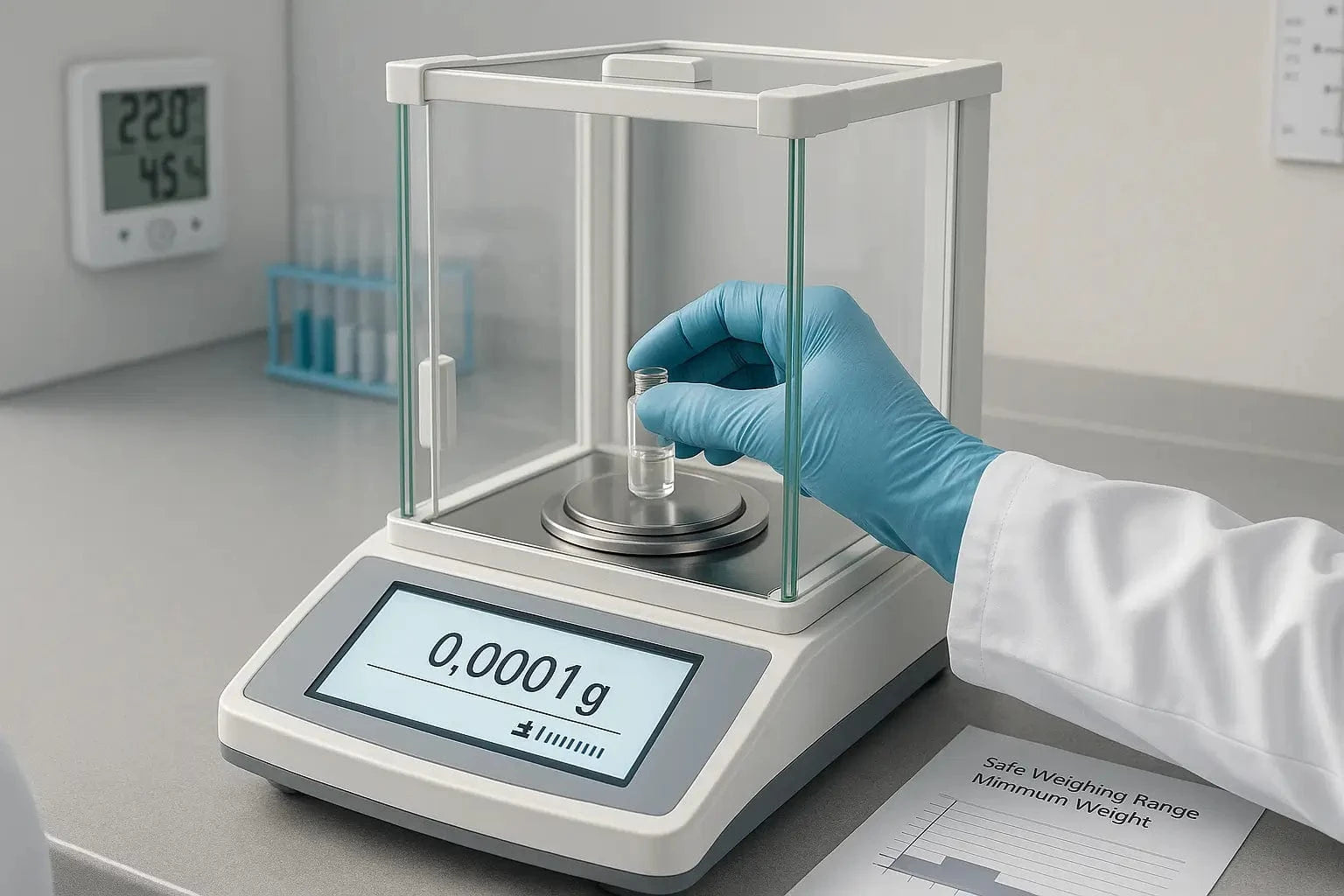

Understanding Measurement Uncertainty
Every measurement made with an analytical balance includes a degree of uncertainty, influenced by random errors (from the environment or user) and systematic errors (from the instrument itself). It’s important to consider and, where possible, quantify this uncertainty—especially when weighing very small amounts, as relative uncertainty increases at lower weights. Always refer to your balance’s documentation for guidance on safe weighing ranges and minimum weight.
For temperature-sensitive samples, explore our Top Refrigerated Centrifuges for Research & Clinical Labs.
Types of Laboratory Balances: Analytical vs. Microbalance vs. Precision Balance
- Analytical balances: Readability of 0.1 mg (0.0001 g) or finer, capacity up to ~520 g. Used for highly precise measurements in standard laboratory applications.
- Microbalances: Even greater sensitivity, with readability down to 1 µg (0.000001 g) or smaller, but with much lower capacity. Used for ultra-fine measurements, such as particulate analysis.
- Precision balances: Lower sensitivity (readability of 1 mg or 0.01 g), but higher capacity. Used when less precision is required or for weighing larger samples.
Understanding these distinctions helps ensure you select the right instrument for your application.
For a deeper dive into the differences between these balance types, read Analytical vs. Precision Balances: What’s the Difference?.
Applications and Uses
Analytical balances are used in a broad range of laboratory and industrial settings. Common applications include:
- Sample and standard preparation
For applications requiring both mass measurement and microscopic analysis, check out our Best Clinical Lab Microscopes guide.
- Formulation and recipe calculation
Clinical and diagnostic labs may also require precise thermal cyclers—see our Best PCR Machines for Clinical & Diagnostic Labs.
- Check-weighing and interval weighing
- Density determination
- Pipette calibration and testing
- Differential weighing
- Quality control in pharmaceuticals, food, chemicals, and research
For labs working with food or biotech samples, homogenization is often required before weighing. See our Best Homogenizers for Food Science & Biotech Labs for recommendations.
- Environmental and academic studies
- Legal-for-trade measurements (with compliant models)
If you’re also selecting centrifuges for your lab, see our Centrifuge Buying Guide and Portable vs. Benchtop Centrifuges for detailed comparisons.
How to Use an Analytical Balance
Accurate weighing with an analytical balance requires careful attention to setup, environment, and technique. Follow these steps:
1. Preparation
- Place the balance on a sturdy, vibration-free surface, ideally on an anti-vibration table or mat.
- Ensure the environment is draft-free, temperature-controlled, and low in humidity fluctuations.
- Level the balance using the leveling feet and bubble indicator.
- Allow the balance to warm up if it has just been turned on or relocated.
2. Calibration
- Calibrate the balance according to manufacturer instructions or your laboratory’s standard operating procedures.
- Use certified calibration weights or the balance’s internal calibration system, if available.
- Recalibrate after relocation, significant environmental changes, or as part of routine maintenance.
3. Weighing Procedure
- Press the zero or tare button to set the display to zero.
- Open the draft shield and place the tare container (e.g., weighing paper, vessel) on the pan using gloves or tweezers to avoid contamination.
- Close the draft shield and wait for the reading to stabilize.
- Press the tare button again if using a container.
- Add the sample carefully until the desired mass is reached.
- Close the draft shield and wait for the final reading.
4. After Weighing
- Remove the sample and container.
- Clean any spills with a soft brush or lint-free cloth.
Best Practices for Placement and Environment
- Place the balance away from doors, windows, and air vents to minimize drafts.
- Maintain stable room temperature and humidity.
- Avoid direct sunlight and sources of electromagnetic interference.
- Use the balance in a low-traffic area to reduce vibration and disturbance.
- Handle samples with gloves or tweezers to prevent contamination and static buildup.
Calibration, Maintenance, and Longevity
Regular calibration and maintenance are essential for both accuracy and the long-term reliability of your analytical balance.
- Calibration: Perform when first installed, after relocation, or when environmental conditions change. Many balances offer internal calibration; otherwise, use certified weights.
- Routine Testing: Conduct regular performance checks to identify potential issues early.
- Cleaning: Clean the weighing pan, draft shield, and surrounding area after each use. Use mild detergents as recommended by the manufacturer, and avoid harsh chemicals.
- Service: Schedule professional servicing as needed, especially for balances used in regulated environments.
Proper care not only ensures accuracy but also extends the lifespan of your instrument, reducing total cost of ownership and supporting sustainability by minimizing waste.
Common Issues and Troubleshooting
Analytical balances are highly sensitive and can be affected by various factors. Here’s how to address the most common issues:
- Static Electricity: Can cause erratic readings. Use anti-static devices, ionizing blowers, or containers made of metal. Maintain adequate humidity and avoid plastic containers if possible.
- Vibrations: Place the balance on an anti-vibration table or mat. Keep away from heavy equipment and foot traffic.
- Temperature Fluctuations: Allow samples and containers to reach room temperature before weighing. Avoid placing the balance near heat sources or air conditioning vents.
- Air Currents: Always use the draft shield and keep its doors closed during weighing.
- Magnetic Fields: Avoid magnetic stirring bars and use non-magnetic containers for weighing.
- Evaporation or Absorption: Use covered containers for volatile or hygroscopic samples.
- Levelling Errors: Regularly check and adjust the balance’s level to ensure accurate results.
- Minimum Weight: Avoid weighing samples below the minimum weight specified for your balance, as results may be unreliable.
Regulatory Compliance and Legal Considerations
Analytical balances used in regulated industries (e.g., pharmaceuticals, food, legal-for-trade applications) must comply with specific standards such as ISO, GLP/GMP, and local trade regulations. Ensure your balance is:
- Properly calibrated and maintained according to regulatory requirements.
- Approved for legal-for-trade use if needed.
- Accompanied by documentation and calibration certificates as required for audits or quality assurance.
Choosing the Right Analytical Balance
When selecting an analytical balance, consider factors such as readability, capacity, and brand reputation. For a detailed comparison of leading brands, see our Ohaus vs. Mettler Toledo Balances guide.
- Required readability and capacity: Match to your application’s precision and sample size needs.
- Application-specific features: Look for data connectivity, automation, anti-static options, or internal calibration if needed.
- Environmental conditions: Choose a model with features suited to your lab’s environment (e.g., vibration resistance, draft protection).
- Regulatory compliance: Ensure the balance meets any legal or industry standards relevant to your work.
- Ease of calibration and maintenance: Consider models with user-friendly calibration and cleaning features.
- Budget and total cost of ownership: Factor in service, calibration, and longevity.
Consult manufacturer specifications and, if needed, seek expert advice to ensure the balance matches your laboratory’s needs.
If you’re setting up a new lab, our guide to choosing the right lab equipment for your startup covers all the essentials.
Sustainability and Instrument Longevity
Selecting a high-quality analytical balance and following best practices for use and maintenance not only ensures reliable results but also extends the instrument’s life. This reduces waste, supports sustainability goals, and lowers the long-term cost of ownership for your laboratory.
Conclusion
Analytical balances are vital for achieving precise and reliable mass measurements in laboratory settings. By understanding their operation, features, types, and maintenance requirements, users can ensure consistent accuracy and maximize the instrument’s lifespan. Regular calibration, careful handling, a suitable environment, and attention to compliance will help you get the best performance from your analytical balance for years to come.
