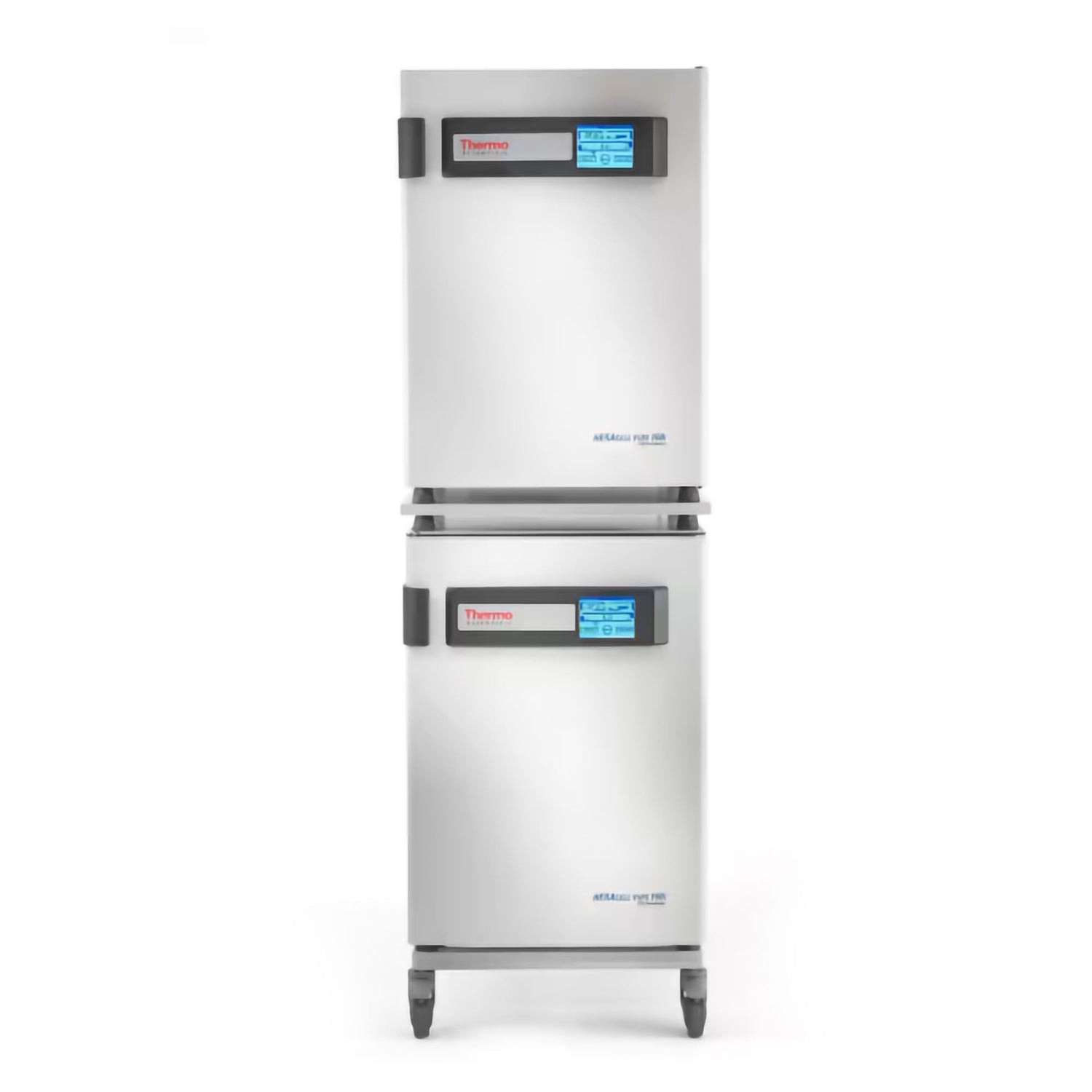

Thermo Scientific™ Heracell™ VIOS 160i CO₂ Incubator – Dual Stack, Direct Heat, 2 × 5.8 cu. ft. (165 L), TC Sensor, 120 V

The Thermo Scientific™ Heracell™ VIOS 160i Dual Stack CO₂ Incubator combines advanced contamination prevention with reliable environmental control, offering two independently operated 165 L (5.8 cu. ft.) chambers in a single footprint. Each chamber features direct-heat temperature regulation, an integrated water reservoir, and a TC CO₂ sensor for accurate gas detection and rapid recovery after door openings.

This stacked configuration maximizes lab space while maintaining complete environmental independence between chambers—ideal for parallel experiments or different cell culture lines. The electropolished stainless-steel chamber minimizes contamination risk and simplifies cleaning.

An in-chamber HEPA filtration system provides ISO Class 5 air quality within minutes, and the LED interface offers clear, intuitive operation. The covered humidity reservoir maintains stable, high humidity to prevent desiccation, while optional 4–20 mA analog outputs and USB data ports support compliance and traceability.

The Heracell VIOS 160i dual-stack design supports reproducibility, safety, and productivity for demanding cell culture workflows.

✅ Key Features

• ✔️ Dual-stack design: Two independent 165 L (5.8 cu. ft.) incubators in one footprint
• ✔️ Total capacity: 11.6 cu. ft. / 330 L
• ✔️ Direct-heat system ensures uniform, stable temperature control
• ✔️ TC (Thermal Conductivity) CO₂ sensor for accurate and consistent gas measurement
• ✔️ In-chamber HEPA filter provides ISO Class 5 clean air in 5 minutes
• ✔️ Electropolished stainless-steel chamber for contamination resistance
• ✔️ Integrated covered water reservoir maintains high relative humidity
• ✔️ LED display and touch controls for intuitive operation
• ✔️ USB port and optional 4–20 mA data outputs for monitoring and record keeping
• ✔️ Independent chamber operation – separate temperature and CO₂ control for each unit
• ✔️ Includes stacking adapter and rollerbase for mobility and space efficiency
• ✔️ 120 V, 50/60 Hz operation
• ✔️ Made in Germany

📊 Technical Specifications

⚠️ Safety Notice

Ensure proper ventilation and stable surface placement before installation. Use only distilled or deionized water in the reservoir. Do not operate near flammable materials. Disconnect power before cleaning or performing maintenance. Follow manufacturer guidelines for sterilization cycles and calibration.
