Scilogex SCI-20 Overhead Stirrers SCI20
The Scilogex SCI-20 Overhead Stirrer offers powerful mixing performance in a compact design. Whether you choose the SCI20-S analog model or the SCI20-Pro digital version, both are reliable, user-friendly tools for mixing up to 20 liters of liquid in laboratory settings.
Built for precision and ease of use, these overhead stirrers have features like high torque motors, wide speed ranges, and a smart through-shaft design. They’re ideal for scientists, lab technicians, and educators looking for dependable lab equipment that doesn’t take up too much space.
🧪 Product Highlights
-
Max Capacity: 20 Liters
-
Speed Range: 50–2200 RPM
-
Torque: Up to 40 N·cm
-
Models Available:
-

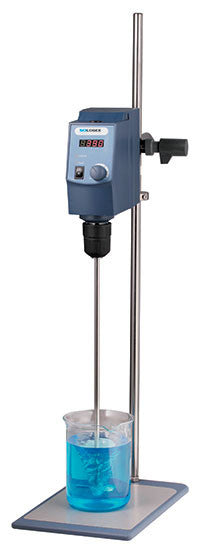

SCI20-S (Analog control with LED display)
-

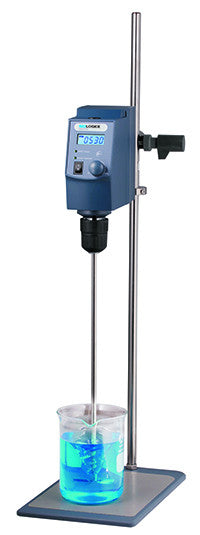

SCI20-Pro (Digital LCD display with microprocessor control)
-
-
Through-shaft design for flexible impeller adjustment
-
Pass-through rod compatibility
-
Over-torque protection for motor safety
-
2-Year Warranty included
📊 Technical Specifications
| Specification | Details |
|---|---|
| Maximum stirring volume | 20 Liters |
| Minimum stirring volume | Not Applicable |
| Speed range | 50 – 2200 RPM |
| Speed accuracy | ± 3 RPM |
| Speed resolution | ± 1 RPM |
| Torque (max) | 40 N·cm |
| Viscosity (max) | 10,000 mPas |
| Chuck diameter range | 0.5 – 10 mm |
| Motor input | 60 W |
| Motor output | 50 W |
| Voltage | 110–220 V, 50/60 Hz, 70 W |
| Dimensions (W x H x D) | 3.3" × 8.7" × 7.3" (inches) |
| Weight | 5.5 lbs |
| Timer | No |
| Programmable | Yes (SCI20-Pro model) |
| Reverse rotation | No |
| Plate/plate material | Not Applicable |
| Warranty | 2 Years |
🔧 Model Comparison: SCI20-S vs. SCI20-Pro
| Feature | SCI20-S (Analog) | SCI20-Pro (Digital) |
|---|---|---|
| Display | LED | LCD (Backlit) |
| Speed Control | Manual (Analog) | Digital (Microprocessor-controlled) |
| PC Control (RS232 Interface) | No | Yes (Software and cable included) |
| Real-time Speed/Torque Monitoring | No | Yes |
| Anti-Spill Slow Start | No | Yes |
| Programmable Parameters | No | Yes |
🔍 What Makes It Unique
✅ Through-Shaft Design
The stirrer rod can be inserted straight through the device, making it easy to adjust impeller height for different vessel sizes—no disassembly needed.
✅ Over-Torque Protection
Built-in safety shuts off the motor if torque exceeds safe limits, protecting both your stirrer and samples.
✅ Wide Chuck Compatibility
A large chuck diameter (0.5–10 mm) allows compatibility with many stirrer shaft types.
💡 Frequently Asked Questions
Q: How can I connect the SCI20-Pro to a computer?
A: Just use a standard 9-pin RS232C serial cable. No programming knowledge needed — the control software is included.
Q: What are the support rod dimensions for the OS20 overhead stirrer?
A: The rod is 8 inches (203 mm) long and 15 mm (19/32 inches) wide.
Q: What does “through-shaft design” mean?
A: It means the stirrer rod can pass directly through the motor body, letting you adjust the impeller position freely. This makes it easier to work with containers of different heights and liquid levels.
