Scilogex D500 Homogenizer

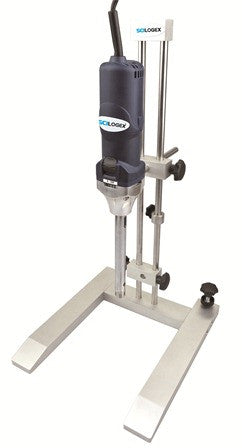

Scilogex D500 Rotor-Stator Homogenizer

The Scilogex D500 Homogenizer is a powerful benchtop rotor-stator system built for high-speed, high-volume sample processing. With a max speed of 29,000 rpm and a flexible volume range from 10 mL to 5 L, this unit is ideal for emulsions, tissue disruption, suspensions, and more. Choose from two generator packages depending on your application needs.

High-Speed, Consistent Processing

• Speed Range: 10,000–29,000 rpm with 6-position control dial
• Sample Volume: Process 10 mL to 5,000 mL efficiently
• Smooth Acceleration: Reduces splashing and ensures stability during start-up
• Overload Protection: Built-in safeguard to extend motor life

Durable & Chemically Resistant Design

• 316L Stainless Steel Generator Shafts: Corrosion-resistant and autoclavable
• PTFE Bushings: Support compatibility with solvents and abrasive materials
• Tool-Free Maintenance: Shaft disassembles easily for fast cleaning

Available Configurations

• DS-500/1 Coarse Generator Package: Ideal for solid/liquid media and general homogenizing. Includes 20 mm coarse probe and H-600 stand.
• DS-500/2 Fine Generator Package: Perfect for emulsions (oil-in-water, water-in-oil). Includes 20 mm fine probe and H-600 stand.

Note: If you purchase only the motor unit, a generator probe must be purchased separately to complete the system.

Key Specifications

• Homogenizer Type: Rotor-Stator
• Sample Volume Range: 10 – 5,000 mL
• Speed: 8,000 – 29,000 rpm
• Motor: 500W brushed motor
• Noise Level: ≤72 dB
• Weight: 1.8 lbs (drive only); 20 lbs (with stand)
• Dimensions: 2.5″ × 2.5″ × 9″ (drive unit)
• Voltage: 110V, 60Hz
• Warranty: 1 year

FAQs

Can the D500 be used handheld?
No, the D500 must be mounted to its stand during use. For flexibility, move the sample container instead of the unit.

What are the dimensions of the included stand?
The H-600 stand is 12″ wide and 24″ tall.

Order the Scilogex D500 Homogenizer from Lab Equipment Direct for fast, precise sample prep in medium to high-volume labs. Choose your generator package or contact us for help with setup.
