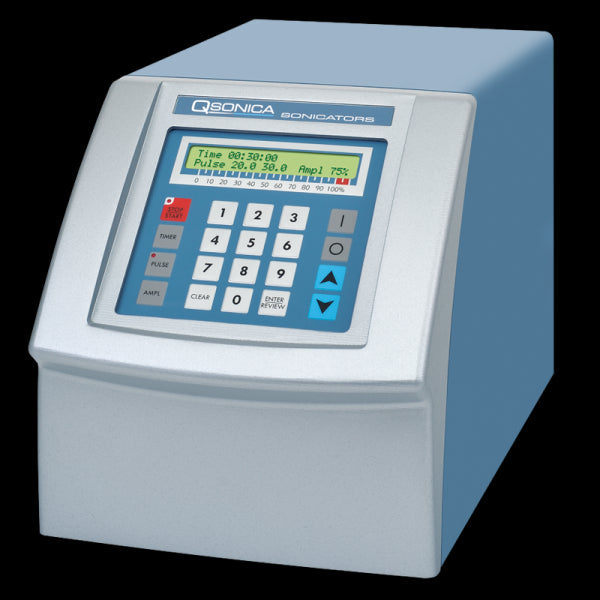

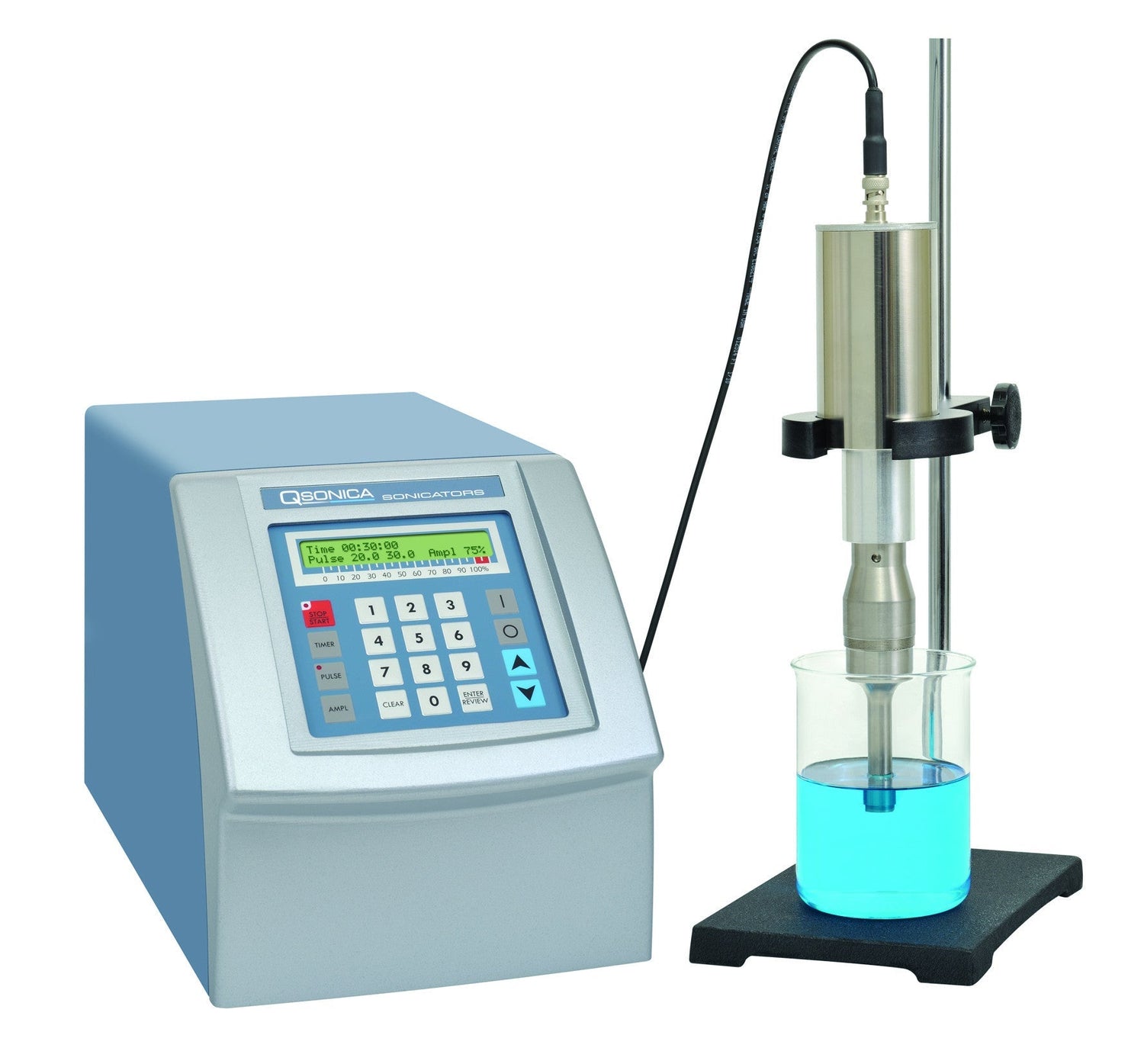

Qsonica Q500 Sonicator Ultrasonic Homogenizer

Qsonica Q500 Ultrasonic Homogenizer (Sonicator)

The Qsonica Q500 is a 500-watt ultrasonic homogenizer designed for precise and programmable sample processing. Whether you're dispersing nanoparticles, lysing cells, mixing emulsions, or preparing suspensions, the Q500 delivers high-performance sonication with real-time control and monitoring. It's ideal for research, pharmaceutical, nanotech, and industrial labs requiring consistent ultrasonic energy.

Powerful Ultrasonic Processing

• 500 Watts of Power: Efficiently processes volumes from 200 µl to 1 liter
• 20 kHz Frequency: Optimized for effective particle disruption and mixing
• Pulse Mode: Adjustable On/Off timing to prevent heat buildup in temperature-sensitive samples

Precise Digital Control

• Amplitude Range: Set from 20% to 100% (for finer control, consider Q700 model)
• Timer: Program up to 10 hours of continuous or pulsed operation

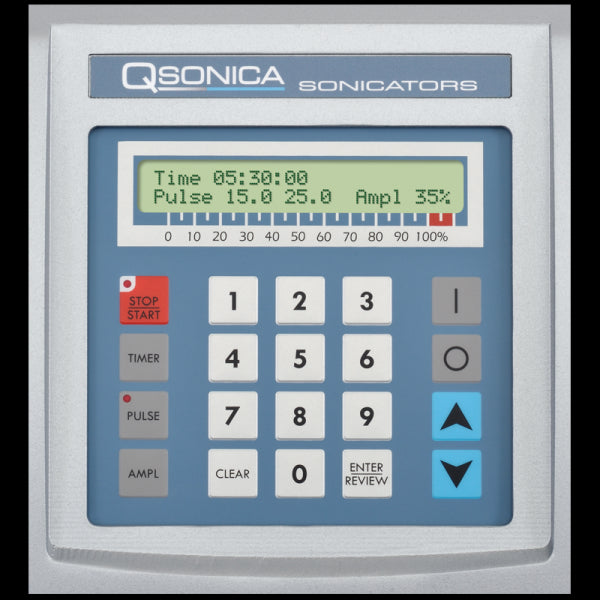

• Display: Real-time feedback on wattage, joules, elapsed time, and processing intensity
• External Control Ready: 9-pin D-sub connector allows integration with a programmable logic controller (PLC)

Flexible and Durable Design

• Compatible Probes: Use with ½″ standard titanium alloy probe (or other optional horns)
• Replaceable Tip: Extend probe life by swapping worn tips
• Rugged Build: RoHS compliant and cTUVus certified
• Overload Protection: Automatically stops the unit if a fault occurs

Key Specifications

• Type: Ultrasonic Homogenizer
• Power: 500 watts, 20 kHz
• Sample Volume: 200 µl – 1 L
• Speed Control: 20–100% amplitude (analog)
• Cooling: Not included (required for runs over 15 minutes)
• Dimensions (W × D × H): 8″ × 15.25″ × 8.5″
• Weight: 15 lbs
• Voltage: 110 V, 50/60 Hz
• Noise Level: 90 dB
• Warranty: 2 years

Note: Sonicator stand and probes are sold separately unless included in a bundle. Lead time: 2–3 weeks.

FAQs

Can I control the Q500 via computer or software?
No RS232, but you can integrate it with a PLC via a 9-pin D-sub connector.

What is the max operating time?
Continuous runs should not exceed 15 minutes without cooling. With airflow, it can run up to 10 hours.

How viscous can my sample be?
If you can pour it, you can sonicate it—up to the viscosity of honey (~4000 cps).

What are the probes made from?
Titanium alloy Ti-6Al-4V for strength and corrosion resistance.

Order the Qsonica Q500 Sonicator from Lab Equipment Direct—engineered for accurate, efficient ultrasonic homogenization across a wide range of applications. Reach out for help choosing the right probe or setup.
