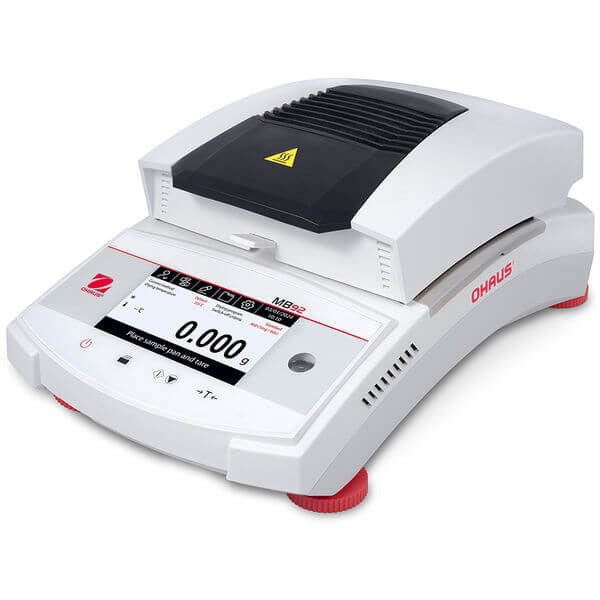

OHAUS MB92 Moisture Analyzer – High-Performance Carbon Fiber Drying
Built for Demanding Lab and Production Environments
The OHAUS MB92 Moisture Analyzer delivers fast, accurate moisture testing with advanced drying technology and rugged durability. Featuring a carbon fiber heating system, a full-color touchscreen, and user-friendly setup, the MB92 is ideal for labs and production lines needing precision, speed, and security in every test.
Accurate Moisture Testing with Smart Control
Engineered for moisture, solids, and regain analysis, the MB92 provides repeatable results — even with frequent use.
-
Capacity: 90 g
-
Readability: 0.001 g
-
Moisture Range: 0.01% – 100%
-
Repeatability:
-
±0.08% (3g samples)
-
±0.015% (10g samples)
-
-
Temperature Range: 40 °C – 200 °C (in 1°C steps)
-
Pan Size: 90 mm (3.5")
Advanced Drying Profiles & Shut-Off Controls
Customize your testing with:
-
4 drying profiles: Standard, Fast, Ramp, and Step
-
8 shut-off criteria: Timed, Manual, Free mg/s, A10, A30, A60, A90, A160
-
Storage: Save up to 20 test methods and 200 results
Intuitive Touchscreen Operation
Operate the MB92 with ease using a 4.3” capacitive touchscreen that shows:
-
Real-time drying curve
-
Moisture %, dry content, regain %, sample weight
-
Method name, test time, and result statistics
The system supports Sample ID, Batch ID, and Name input for traceability.
Rugged Construction, Lab-Ready Features
Designed for constant lab use and easy maintenance:
-
Carbon fiber heat source for even, efficient drying
-
PBT housing and die-cast aluminum base
-
Full-glass front panel and tool-free heating chamber for quick cleaning
-
Multi-color status light indicates live test status
-
In-use cover included for protection
Connectivity & Data Output
Easily connect to your lab systems and keep your results GLP/GMP compliant.
-
USB Host, USB Device, and RS232 ports
-
Export stored results or live data to external printers or PCs
-
Supports live documentation and audit trails
📐 Key Specifications
| Feature | Value |
|---|---|
| Capacity | 90 g |
| Readability | 0.001 g / 0.01% |
| Heater Type | Carbon fiber |
| Temperature Range | 40 – 200 °C |
| Drying Profiles | Standard, Fast, Ramp, Step |
| Shut-Off Criteria | 8 types (manual, timed, auto) |
| Touchscreen Display | 4.3” capacitive full-color |
| Sample Size Range | 0.5 g – 90 g |
| Repeatability (3g / 10g) | ±0.08% / ±0.015% |
| Stored Methods / Results | 20 / 200 |
| ID Tracking | Sample, Batch, and Name |
| Dimensions (L×H×W) | 13.9" × 5.4" × 8.3" |
| Weight | 9.5 lbs (4.3 kg) |
| Power | 115V, 60 Hz (cord included) |
| Operating Environment | 10°C – 40°C, ≤85% RH |
| Warranty | 2 years |
✅ Fast, consistent results
✅ Designed for lab & production use
✅ GLP/GMP-compatible data output
