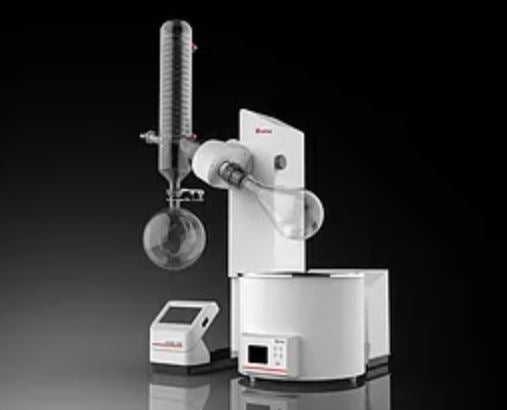

LabTech EV400Touch Rotary Evaporator – Smart, Safe, and Reliable Solvent Removal
Touchscreen-Controlled Rotary Evaporator for Everyday Lab Distillations
The LabTech EV400Touch offers a new standard in rotary evaporation, combining safety, precision, and digital control in an ergonomic, space-saving design. Ideal for routine distillation tasks in chemical, biological, and analytical labs, it provides smooth operation, precise temperature control, and durable construction.
Digital Precision, Streamlined Operation
The EV400Touch features a color touchscreen that puts real-time control at your fingertips.
-
Touchscreen display for speed and temperature control
-
Motorized vertical lift with 160 mm stroke
-
Speed range: 20 – 300 rpm
-
Temperature range: Ambient to 210°C
-
PID control ensures precise heating (±1°C with water, ±2°C with oil)
-
Quiet operation and easy program setup
Built for Daily Use and Lab Safety
Engineered for reliable performance and lab protection:
-
5L stainless steel heating bath
-
PTFE + FKM sealing ring resists aggressive solvents
-
Anticorrosion sealing system and safety-first design
-
On-line sample addition via PTFE valve
-
Ergonomic design for simple use and maintenance
-
Quick glassware attachment with 1L evaporating and receiving flasks included
Choose Your Condenser
Includes your choice of:
-
Vertical condenser
-
Diagonal condenser
Both options deliver 1200 cm² cooling surface and fit ¼” ID tubing (GL-14 threads).
📐 Key Specifications
| Feature | EV400Touch Model |
|---|---|
| Rotation Speed | 20 – 300 rpm |
| Stroke | 160 mm |
| Max Flask Size | 3000 mL |
| Heating Temperature Range | Ambient to 210°C |
| Temperature Accuracy | ±1°C (water), ±2°C (oil) |
| Heating Power | 1300 W |
| Bath Capacity | 5 L |
| Lift Type | Motorized |
| Sealing Ring | PTFE + FKM |
| Condenser Options | Vertical or Diagonal |
| Cooling Surface | 1200 cm² |
| Built-in Vacuum Controller | No |
| Programmable Operations | No |
| Rotation Direction | Clockwise & Counterclockwise |
| Dimensions (L×W×H) | 17″ × 22″ × 35″ |
| Weight | 99 lbs (45 kg) |
| Voltage | 110V / 230V, 50/60Hz |
| Warranty | 1 year |
✅ Includes 1L evaporating & receiving flasks
✅ Safe, precise, and durable for daily lab use
✅ Compatible with most LabTech vacuum and cooling systems
