Description
Description

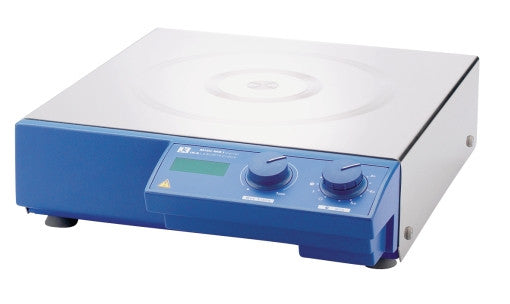

High-Capacity Digital Magnetic Stirrer for Mixing up to 50 Liters Without Heating
The IKA Midi MR 1 is a powerful digital magnetic stirrer designed for labs that need to mix large volumes—up to 50 liters of water-based solutions—without heating. Built with a durable stainless steel plate and a non-locking motor, it offers infinitely variable speed control and a bright digital LED display for accurate readouts.
Its flat, sturdy build and single-position platform make it ideal for industrial, educational, and research lab settings where reliable, large-scale stirring is required.
🔧 Key Features
-
No heating – magnetic stirrer only
-
Supports stirring up to 50 liters (H₂O)
-
Infinitely variable speed up to 1000 RPM
-
Flat stainless steel plate for durability and stability
-
LED digital speed display
-
Timer function: 0–56 minutes or continuous mode
-
Non-locking motor for reliable performance
-
Compact footprint with heavy-duty frame
-
IP 21 rated for lab safety
-
2-year warranty
📊 Technical Specifications
| Specification | Details |
|---|---|
| Maximum stirring volume | 50 Liters (H₂O) |
| Speed range | 0 – 1000 RPM |
| Stirring bar length (max) | 80 mm |
| Timer | Yes (0–56 min) or continuous |
| Motor output power | 19 W |
| Set-up plate material | Stainless steel 1.4301 |
| Plate dimensions | 350 mm × 350 mm |
| Controls | Digital (speed + timer) |
| Heating | None |
| Temperature increase from max stirring (1hr) | +28 K (from 22°C) |
| Programmable | No |
| Reverse rotation | No |
| Voltage | 230 / 100–120 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 70 W |
| Dimensions (W × H × D) | 14.17" × 4.33" × 16.93" (360 × 110 × 430 mm) |
| Weight | 23.59 lbs (10.7 kg) |
| Permissible ambient temperature | 5–40°C |
| Permissible humidity | ≤ 80% RH |
| Protection class | IP 21 |
| Warranty | 2 Years |
💬 Additional Notes
-
Perfect for high-volume stirring without heat-sensitive interference
-
Simple, durable, and ideal for chemical, biological, or educational applications
-
Speed is electronically stabilized, maintaining performance under changing loads
🧪 Frequently Asked Questions
Q: What is the maximum recommended stir bar length?
A: Up to 80 mm (approximately 3.15 inches).
