Description
Description

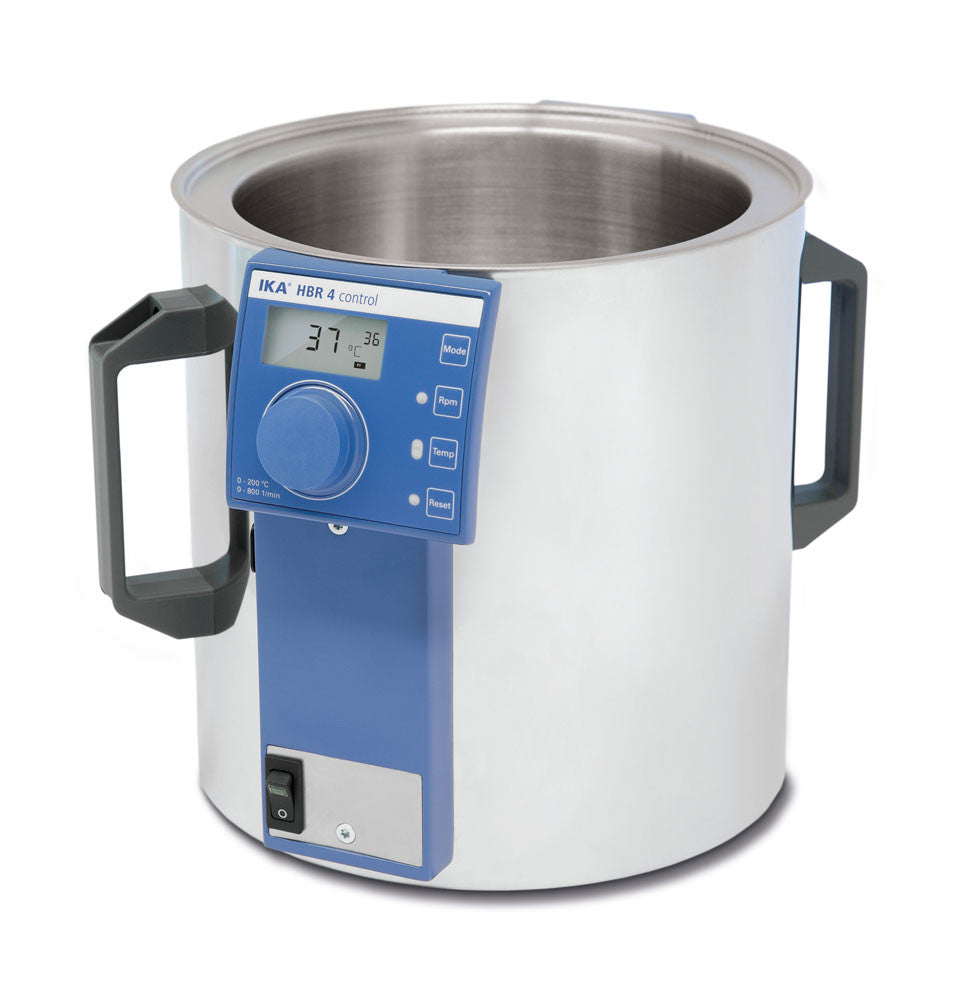

IKA HBR 4 Control High-Temperature Heating Bath
Compact. Accurate. Built-in Stirring for Uniform Heat Distribution
The IKA HBR 4 Control delivers precise high-temperature heating up to 200°C, making it the ideal solution for chemical, biological, or industrial applications requiring stable thermal environments. Designed for versatility and performance in a compact footprint, it combines a 4-liter stainless steel bath with an integrated magnetic stirrer—ensuring uniform heat distribution across your sample.
This bath is ideal for high-precision, small-batch work with water or low-viscosity oils, and includes a digital display, RS232 interface, and external PT1000.60 temperature sensor for advanced thermal feedback.
🔧 Key Features & Benefits
-
Wide Temp Range:
Heats from ambient to 200°C for a variety of lab workflows -
Built-in Magnetic Stirring:
Integrated stirrer ensures even heat circulation in the bath -
Precision Control:
Digital LCD display for set, actual, and safety temperatures, plus stirring speed -
Compact Yet Durable:
4-liter stainless steel tank with double-jacketed insulation for burn protection -
Flexible Fluids:
Compatible with water or low-viscosity oils (up to 50 mPas) -
Safety Certified:
Adjustable DIN 12877 Class II temperature limiter and RS232 data interface
⚙️ Technical Specifications
| Attribute | Specification |
|---|---|
| Temperature Range | Ambient to 200°C |
| Temperature Stability | ±1°C |
| Bath Capacity | 4 Liters |
| Heating Power | 1000 W |
| Stirring Speed | 150–800 rpm |
| Stirring Control | Stepless, Digital LCD |
| Temp Control Method | PT1000.60 sensor (included) |
| Safety Class | DIN 12877 Class II |
| Tank Material | Stainless Steel (1.4301) |
| Dimensions (W x D x H) | 13.4" x 9.8" x 13.4" |
| Weight | 9.7 lbs (4.4 kg) |
| Data Interface | RS232 |
| Voltage | 115V / 230V, 50/60Hz |
| Warranty | 2 Years |
❓ FAQ
Is the IKA HBR 4 Control UL listed?
No, it is not UL listed. However, it adheres to DIN safety standards (DIN 12877 Class II).
Does this bath allow for external circulation?
No. The HBR 4 is designed for internal heating only, but features an integrated magnetic stirrer to enhance temperature uniformity.
What fluid types are supported?
Use water or low-viscosity oils (up to 50 mPas) for safe and efficient heating.
Can I insert lab vessels directly into the bath?
Yes. For best results, consider the optional intermediate bottom plate to prevent magnetic bar interference.
🛒 Order from Lab Equipment Direct
Get precise, safe, and efficient high-temperature heating with the IKA HBR 4 Control Heating Bath—perfect for analytical chemistry, life sciences, and QA/QC labs.
👉 Buy now from Lab Equipment Direct — Trusted source for advanced lab heating solutions.
