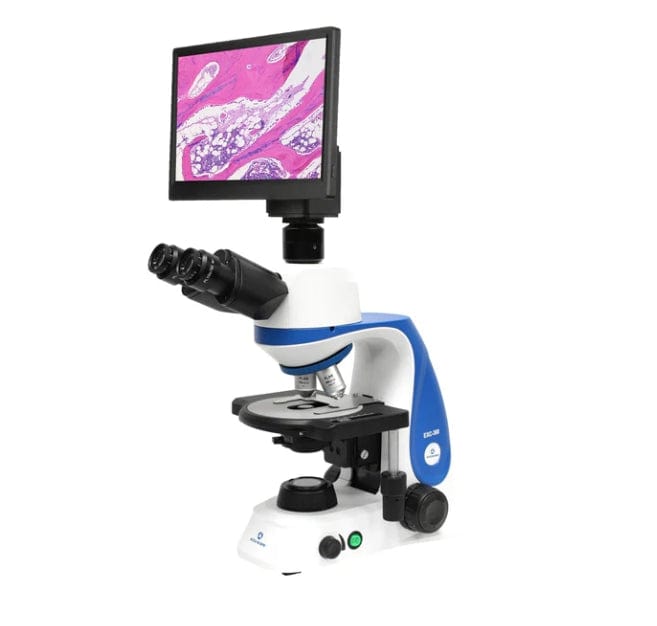

Fisher Anatomical Compound Microscope Bundle – Trinocular Head, Plan Achromat 4X/10X/40XR/100XR Oil Objectives, Double-Layer Rackless Mechanical Stage with Ceramic Insert

The Fisher Anatomical Compound Microscope Bundle delivers professional imaging performance and exceptional optical clarity in a modern, durable design. Featuring Plan Achromat objectives (4X, 10X, 40XR, 100XR oil), a trinocular Siedentopf head, and a double-layer rackless ceramic stage, this system offers reliability and accuracy for demanding laboratory and clinical use.

Supplied as a complete digital system, it includes the Accu-Scope™ EXC360HDS Microscope with a 6 MP Excelis HD Camera and Monitor, enabling live image viewing, capture, and analysis — ideal for teaching, research, and documentation workflows.

✅ Key Features

• ✔️ Trinocular Siedentopf head, 30° inclined and 360° rotatable for ergonomic viewing and camera integration

• ✔️ Fixed light path split (50:50) between eyepieces and camera port for simultaneous viewing and imaging

• ✔️ Plan Achromat objectives (4X, 10X, 40XR, 100XR oil) provide sharp, flat-field images with color correction

• ✔️ Excelis HD Camera System (6 MP) with integrated monitor (CAT# AU-600-HDS, 0.35x C-Mount adapter)

• ✔️ PL10×/22 mm focusable eyepieces with soft eyecups, accepts 24 mm reticles for measurement applications

• ✔️ Double-layer rackless mechanical stage (210 × 170 mm) with ceramic insert for smooth slide movement and durability

• ✔️ X–Y movement range 78 × 51 mm, right-hand low-position controls for comfortable operation

• ✔️ N.A. 1.25 Abbe condenser with iris diaphragm for optimized light control

• ✔️ 3 W LED illumination, variable intensity, rated for over 25,000 hours of continuous use

• ✔️ Universal internal power supply (110–240 V) and integrated USB-C charging port on the rear

• ✔️ Coaxial focusing system with adjustable tension and upper limit stop for slide protection

• ✔️ Rugged all-metal frame with molded protective shell for durability and stability

• ✔️ Supplied with dust cover, immersion oil, power cord, and instruction manual

• ✔️ Manufactured by Fisher Anatomical

📊 Technical Specifications

⚠️ Safety Notice

Place the microscope on a stable surface before use. Connect only to a 110–240 V AC power source using the included cord. Avoid direct exposure to the LED light source and keep liquids away from electrical components. Use lens paper to clean optical surfaces and never use solvents. Disconnect power before maintenance or bulb replacement.
