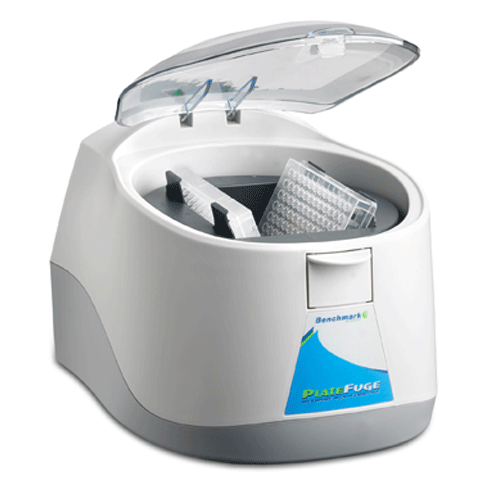

Benchmark PlateFuge Mini Centrifuge C2000

Benchmark PlateFuge Mini Centrifuge Designed for Microplates

The Benchmark PlateFuge™ is the first mini centrifuge explicitly designed for microplates. Its compact footprint makes it ideal for crowded lab benches, while the unique swing-out rotor ensures fast, even spinning of PCR and microtiter plates—no sealing film or caps required.

Fast, Safe, and Space-Saving

• Designed for Microplates: It accepts all common PCR plate formats—skirted, semi-skirted, and non-skirted—as well as most microtiter plates up to 25 mm high.

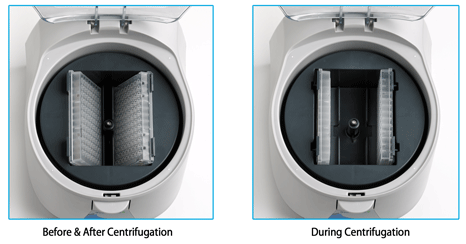

• Swing-Out Rotor: The patented design swings plates from a 75° angle to a horizontal position during spin-down, ensuring droplets settle to the bottom.
• Ultra-Compact Size: Takes up half the space of traditional plate centrifuges (only 9" × 10").

Quick & Easy Operation

• Fast Spin-Down: Achieves 600 ×g at 2,550 rpm—most samples spin down in under 20 seconds.
• Auto Brake: Electric brake stops the rotor within 4 seconds once the lid is opened.
• Drop-In Loading: Plate carriers are angled at 75° for easy loading. There is no need to seal plates unless wells are near full.

Applications

• Ideal for PCR setup
• Cell washing and plate prep
• Spinning down reagents before thermal cycling

Key Specifications

• Max Speed: 2,550 rpm
• Max Force: 600 ×g
• Capacity: 2 × PCR plates, 2 × microtiter plates (up to 25 mm), or 24 × 0.2 ml PCR strips
• Deceleration Time: 4 seconds
• Dimensions (W × D × H): 9.2" × 10.2" × 7.75" (23 × 26 × 19.7 cm)
• Weight: 9 lbs (4.1 kg)
• Electrical: 115V or 230V, 50/60 Hz, 250 W
• Warranty: 2 years

Order the Benchmark PlateFuge™ today from Lab Equipment Direct. It is compact, easy to use, and made for quick PCR prep. It is perfect for labs that need speed without sacrificing space.
