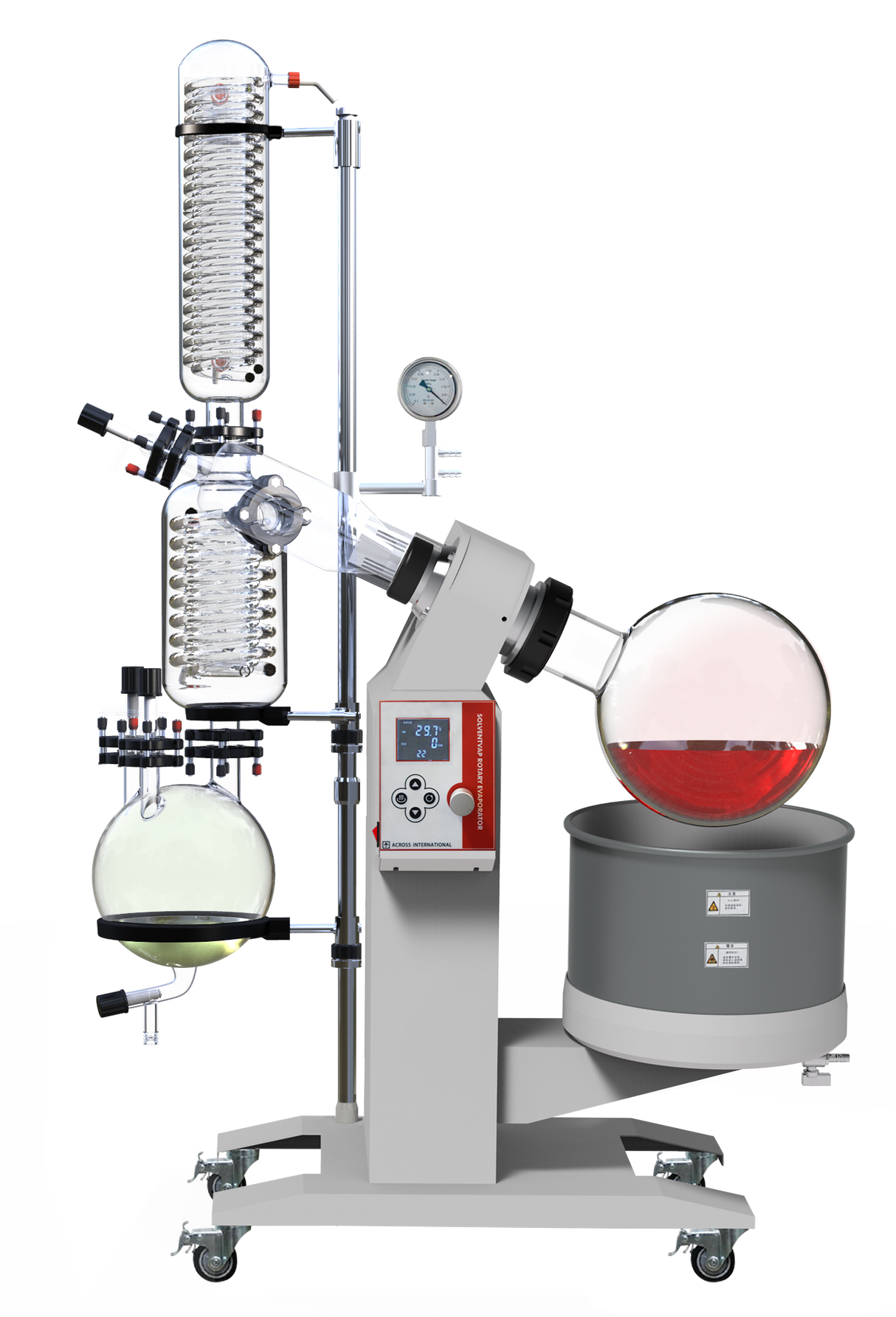

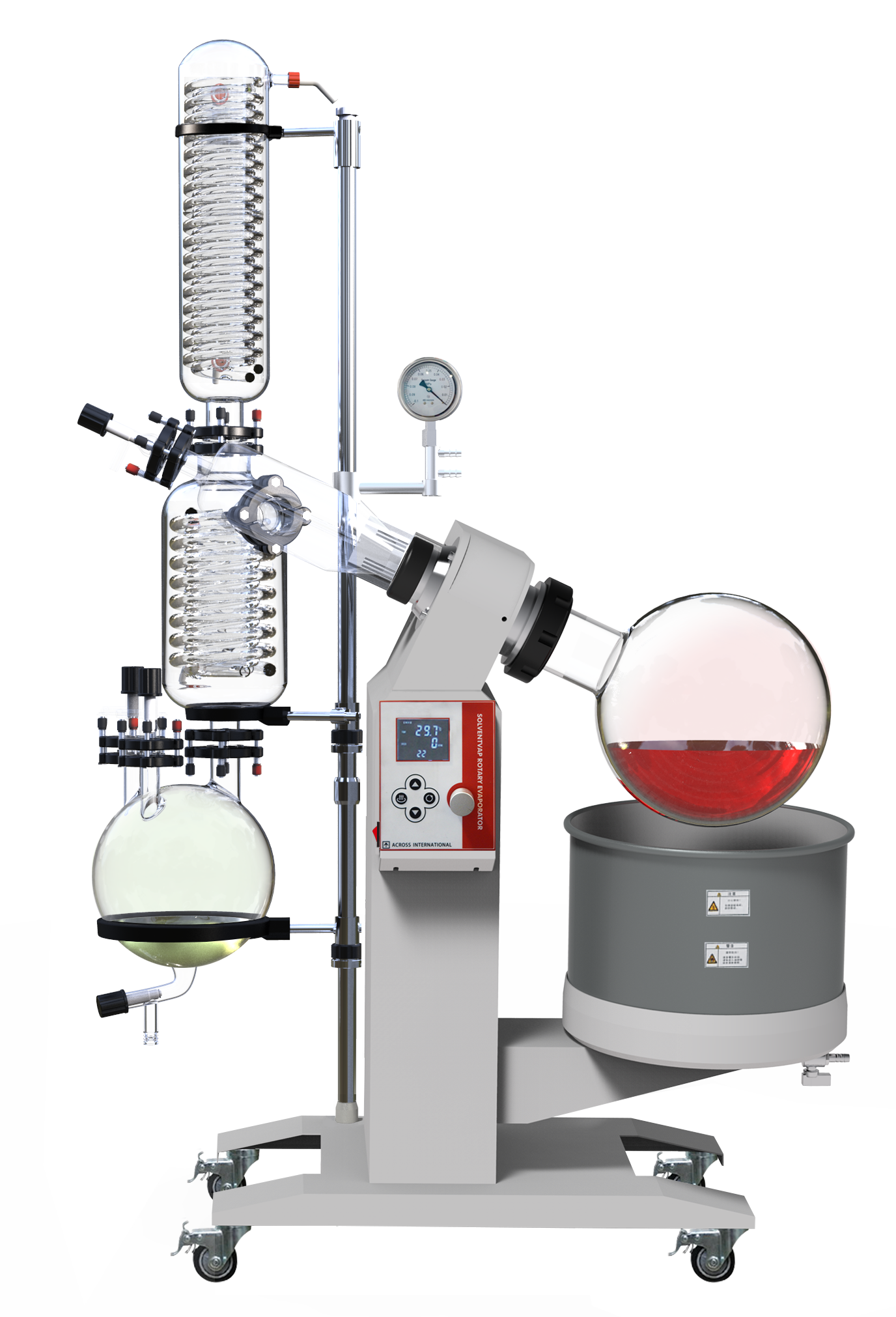

Ai SolventVap SE26 Rotary Evaporator
Ai SolventVap SE26 Rotary Evaporator - None is backordered and will ship as soon as it is back in stock.
Ai SolventVap SE26 Rotary Evaporator
SETTING UP A NEW LAB?
SAVE TIME AND MONEY—TALK TO A LAB EQUIPMENT EXPERT NOW!
Call us at 1 (888) 702-1513 for a FREE CONSULTATION and personalized quote.
Description
Description
Ai SolventVap SE26 Rotary Evaporator – 10L UL/CSA-Certified Solvent Removal System
High-Capacity Rotary Evaporation with Digital Control and Advanced Safety
The Ai SolventVap SE26 Rotary Evaporator offers a 10-liter solvent distillation capacity with premium features like PTFE + Viton seals, UL/CSA certification, and motorized lift — making it ideal for labs that require high-efficiency solvent recovery under strict safety standards.
Designed for everyday use in chemical, cannabis, and academic labs, the SE26 combines powerful performance with long-term durability.
Reliable Solvent Recovery for Large-Volume Labs
-
Evaporating Flask: 10L (2.6 gallons)
-
Receiving Flask: 5L (1.3 gallons)
-
Evaporation Speed:
-
Up to 0.75 gal/hr (water)
-
Up to 1.5 gal/hr (alcohol)
-
-
Rotation Speed: 10 – 130 rpm
-
Vacuum Level: < 3 Torr
-
Temperature Range: Ambient – 99°C (210°F)
Safe, Quiet, and Easy to Use
-
UL 61010-1 and CSA certified for safety compliance
-
Digital display for speed and bath temperature
-
Motorized bath lift for smooth and safe height adjustments
-
Overheat, dry-run, and fuse protection included
-
Quiet worm-gear motor with low vibration operation
-
All-PTFE valves and PTFE + Viton seals for chemical resistance
-
Swivel casters with locks for easy movement and stability
Vertical Condenser with High Cooling Efficiency
-
Triple-circulating glass cold traps for improved condensation
-
1200 cm² cooling surface
-
Vertical configuration — ideal for high-boiling-point solvents
-
3/8" hose barbs (×4) for chilling fluid input/output
What's Included
-
10L evaporating flask
-
5L receiving flask
-
Vertical condenser
-
Stainless steel water bath with digital PID control
-
All valves, seals, connectors, and motorized components
-
Optional accessories available:
-
Ai C30-17 chiller
-
Welch 2052 vacuum pump
-
JKEM DVR-200/300 vacuum controller
-
📐 Key Specifications
| Feature | SolventVap SE26 |
|---|---|
| Capacity (Evaporating Flask) | 10L (2.6 gal) |
| Receiving Flask Capacity | 5L (1.3 gal) |
| Rotation Speed | 10 – 130 rpm |
| Temperature Range | Ambient – 99°C |
| Temperature Controller | Digital PID |
| Heating Power | 3800 W (300 W rotation motor) |
| Vacuum Level | < 3 Torr |
| Seals | PTFE + Viton |
| Cooling Surface | 1200 cm² |
| Motor Type | Worm gear drive |
| Bath Dimensions | 13.8″ dia × 8.7″ depth × 11″ height |
| Lift Type | Motorized (4″ max lift) |
| Construction | Stainless steel bath, borosilicate glassware |
| Unit Dimensions (W×D×H) | 36″ × 22″ × 67″ |
| Weight | 200 lbs (evaporator), 100 lbs (glassware) |
| Warranty | 1 year (excludes glass and gaskets) |
| Compliance | UL 61010-1, CSA C22.2# 61010-1-12 |
✅ Built for high-volume solvent recovery
✅ Fully certified for lab and industrial safety
✅ Ideal for alcohol-based and high-boiling-point solvents
🛒 Buy from Lab Equipment Direct
Need a powerful, 10L rotary evaporator that’s UL/CSA certified?
Order the Ai SolventVap SE26 today from Lab Equipment Direct — your source for high-performance distillation and evaporation systems.👉 Order Now at Lab Equipment Direct
Trusted support. Fast shipping. Designed for demanding labs.
