Description
Description

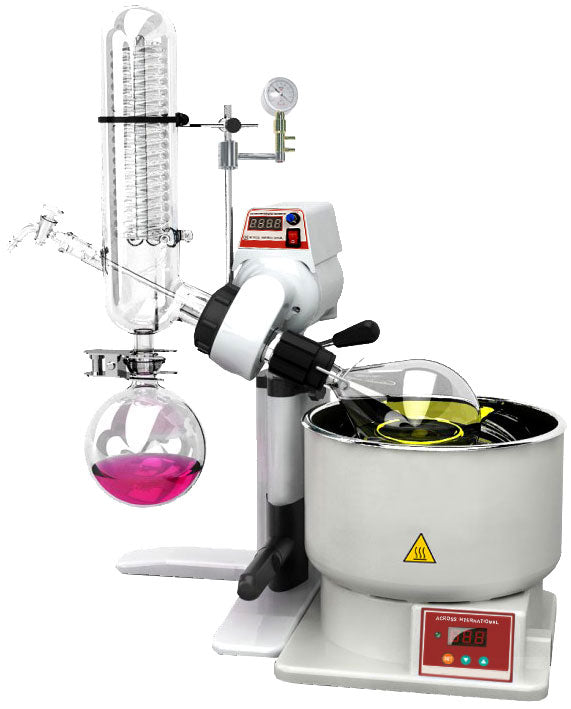

⚗️ Ai SolventVap SE05 Rotary Evaporator – 2L Compact Distillation System
Digital Rotary Evaporator with PTFE Seals, UL/CSA Certification & Cold Trap Option
The Ai SolventVap SE05 is a 2-liter rotary evaporator built for labs that need safe, reliable, and compact solvent removal. It features UL/CSA certification, a digital PID-controlled heating bath, and a manual lift system for simple and stable operation. Ideal for educational, chemical, and cannabinoid extraction labs, this system offers performance and safety normally found in higher-priced models.
Reliable Performance for Everyday Lab Use
-
Evaporating flask capacity: 0.5L, 1L, or 2L (user-selectable)
-
Receiving flask capacity: 1L
-
Rotation speed: 10 – 180 rpm
-
Evaporation rate: Up to 20 ml/min (water)
-
Temperature range: Ambient to 99°C (210°F)
-
PID-controlled stainless steel water bath (2-gallon capacity)
Built for Lab Safety & Durability
-
UL 61010-1 and CSA C22.2 certified
-
Dry-run, over-temperature, and fuse protection
-
Manual lift system with locking height control
-
PTFE + Viton gaskets for chemical resistance and long-lasting seals
-
Low-profile design for easy installation and maintenance
-
Whisper-quiet worm gear motor ensures stable, low-vibration rotation
Choose the Condenser That Fits Your Process
Vertical Condenser (standard):
-
Dual-spiral glass tubing
-
1200 cm² cooling surface
-
3/8″ hose barbs for chilling fluid and vacuum ports

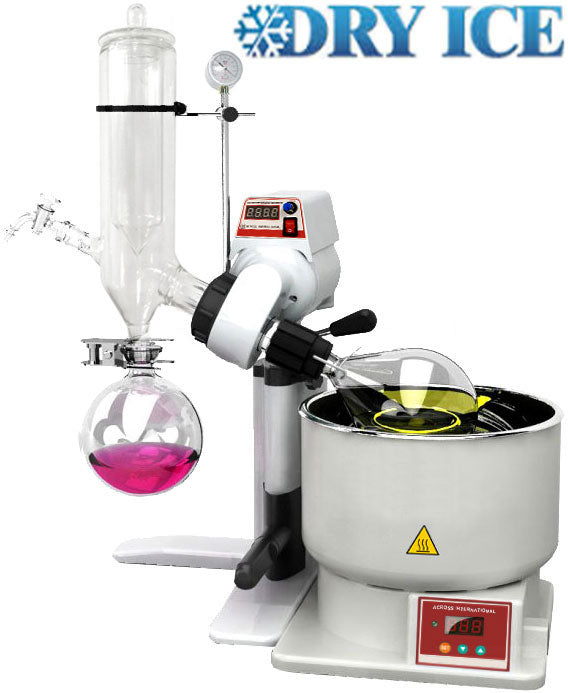

Optional Cold-Trap Condenser:
-
Ideal for dry ice operation — no chiller required
-
Integrated lid design for easy use
What's Included
-
Modular rotary base with digital control
-
2L pear-shaped evaporating flask
-
1L receiving flask
-
Stainless steel water bath (2-gallon)
-
Vertical condenser (standard) or optional cold trap
-
PTFE vacuum and fluid connectors
-
Seals, valves, and setup components
-
1-year warranty (excluding glassware and gaskets)
📐 Key Specifications
| Feature | Value |
|---|---|
| Flask Capacity | 0.5L / 1L / 2L |
| Receiving Flask | 1L |
| Rotation Speed | 10 – 180 rpm |
| Heating Range | Ambient – 99°C |
| Heating Power | 1050 W (total: 1075 W) |
| Motor Power | 25 W |
| Temperature Controller | PID digital, 0.1°C steps |
| Lift Mechanism | Manual with locking balance arm |
| Lift Distance | 4" (extendable to 10") |
| Cooling Surface | 1200 cm² |
| Vacuum Connection | 3/8" hose barb |
| Seal Material | PTFE + Viton |
| Ultimate Vacuum | < 3 Torr |
| Unit Dimensions (W×D×H) | 22″ × 12.5″ × 26″ |
| Unit Weight | 21 lbs (Shipping: 40 lbs) |
| Warranty | 1 year (glassware not included) |
✅ Easy-to-use digital interface
✅ Modular design for easy upgrades
✅ Ideal for solvent distillation in compact labs
🛒 Buy from Lab Equipment Direct
Looking for a safe, compact, and reliable rotary evaporator?
Order the Ai SolventVap SE05 Rotary Evaporator from Lab Equipment Direct and get consistent performance, digital control, and lab-certified safety.👉 Shop Now at Lab Equipment Direct
Trusted support. Fast shipping. Engineered for real lab work.
