Ai RapidChill 3.5 Cu Ft -86°C Stackable ULT Freezer
Ultra-Compact, Ultra-Low Temperature – Built for Efficiency and Space Saving
The Ai RapidChill 3.5 cu ft -86°C ULT freezer offers the same elite level of cold storage performance found in larger models—now in a space-saving, stackable format. Designed for rapid cooling, energy efficiency, and reliable sample preservation, it’s ideal for labs with limited floor space but high standards for sample protection.
This unit is fully CDC and VFC compliant, making it perfect for storing COVID-19 vaccines, DNA/RNA samples, viral specimens, plasma, tissues, and temperature-sensitive reagents.
🔍 Key Features
-
Ultra-Low Temp Performance
Maintains temperatures from -40°C to -86°C, reaching target temperature in just 4 hours -
Compact & Stackable Design
Save space in your lab without compromising performance (just 30" wide and 32" high) -
Outstanding Temperature Uniformity
±4°C temperature uniformity ensures safe, consistent sample storage -
Energy Efficient & Quiet Operation
Runs at just 5.5 kWh/day and operates at a low 46 dBA -
Advanced Insulation
Vacuum Insulated Panel (VIP) technology for efficient cold retention and reduced energy loss -
Microprocessor-Controlled Digital Display
View internal temperature, ambient temp, input voltage, and system alerts -
Battery Backup
48-hour backup for controller and alarms during outages -
Secure & Durable
Stainless steel interior, lockable external door with 4 silicone sealing layers -
Data Logging for Compliance
Standard RS-485 & USB ports (15 years of data storage), optional 4-20mA transmitter
📏 Specifications at a Glance
Attribute | Detail |
---|---|
Capacity | 3.5 Cu Ft (13 x 19.5 x 24.5" chamber) |
Temperature Range | -40°C to -86°C |
Uniformity | ±4°C |
Power Consumption | 5.5 kWh/day |
Compressor | SECOP (Germany), direct cooling |
Cooling Time | 4 hours (ambient to -86°C) |

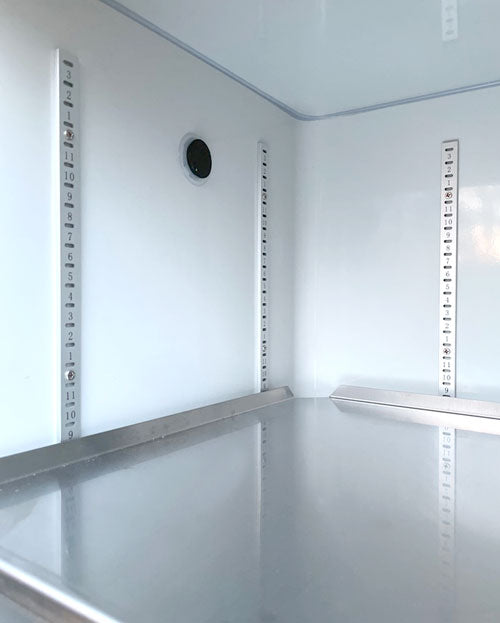

Shelving | 1 adjustable stainless steel shelf (2 compartments) |
Noise Level | 46 dBA |
Weight | 240 lbs |
Dimensions (WxDxH) | 30" x 26" x 32" |
Compliance | UL 61010-1 / CSA C22.2 |
Warranty | 2-year full service / 3-year parts / 5-year compressor |
🧪 Ideal For
-
Vaccine storage (COVID-19, influenza, mRNA-based)
-
Biomedical and research labs with tight space constraints
-
Small-batch DNA/RNA, virus, or serum storage
-
Clinics, universities, biotech startups, and field research applications
🔐 Safety & Compliance Features
-
Over-temp, power surge, and compressor protections
-
Door open, high/low temp, sensor failure, and system alarms
-
Password lockout for unauthorized access prevention
-
48-hour alarm system battery backup
-
Grounding and circuit protection included
📦 Included
-
1 adjustable stainless steel shelf
-
Internal and external stainless steel doors
-
RS-485 and USB data ports
-
Built-in casters with leveling feet
🛒 Buy from Lab Equipment Direct
Get ultra-low, ultra-secure, and ultra-compact temperature control. The Ai RapidChill 3.5 CF -86°C ULT Freezer is trusted by labs, clinics, and researchers worldwide who demand high performance in limited space.
👉 Order today and secure your most valuable samples with confidence.
