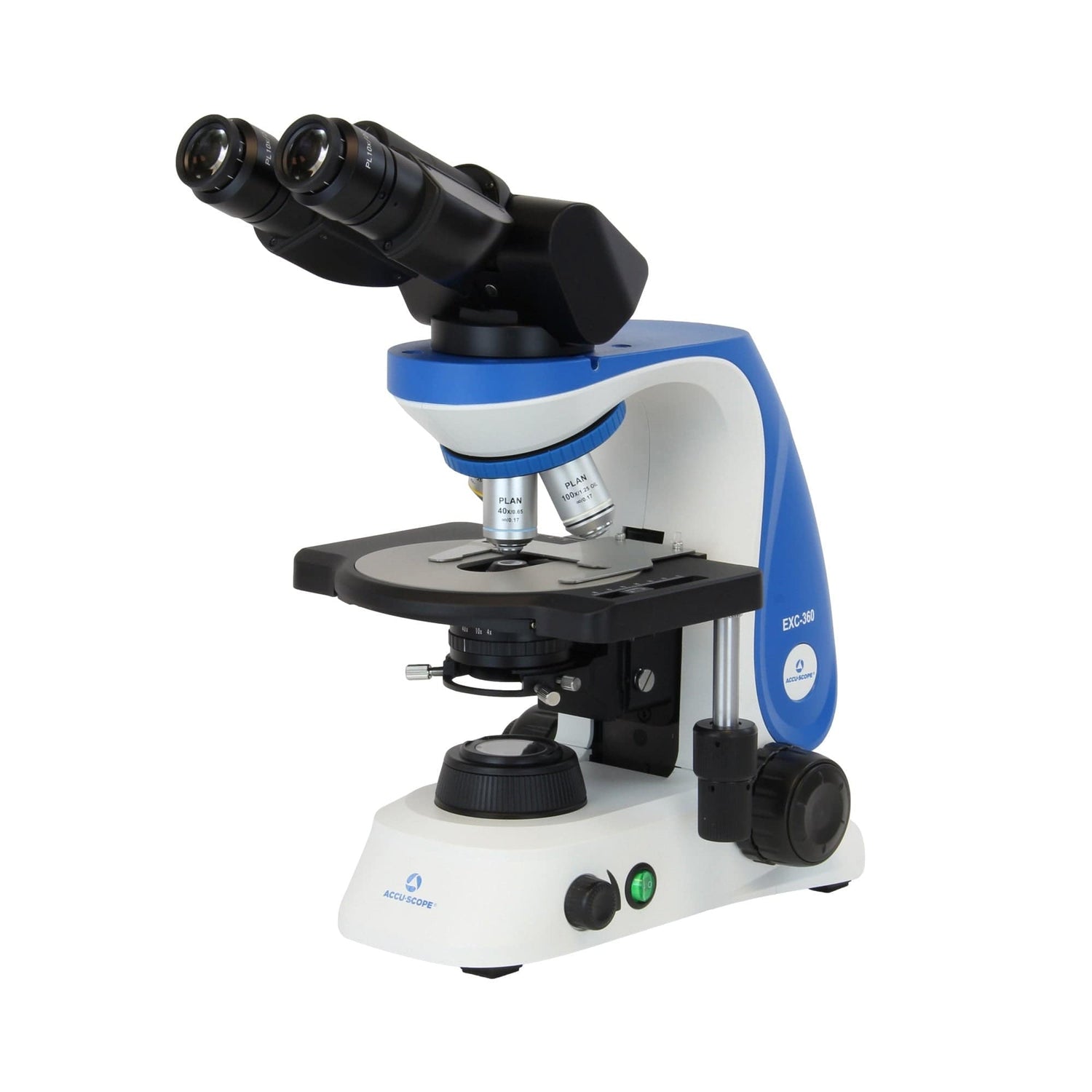

Accu-Scope® EXC-360-BE Compound Microscope – Binocular Head, Plan Achromat 4X/10X/40X/100XR, Rackless Mechanical Stage with Ceramic Insert

The Accu-Scope® EXC-360-BE Ergo Binocular Microscope delivers precision, comfort, and clarity for routine clinical, research, and educational microscopy.
Featuring Plan Achromat infinity-corrected objectives and brilliant LED illumination, it produces bright, high-resolution images across all magnifications.

The rackless ceramic stage provides smooth, precise movement while preventing wear and damage, and the ergonomic binocular head reduces operator fatigue during extended viewing sessions.

✅ Key Features

• ✔️ Ergonomic binocular head with widefield PL10×/22 mm eyepieces for comfortable, high-clarity observation

• ✔️ Plan Achromat infinity-corrected objectives (4X, 10X, 40X, 100XR oil) for bright, flat-field imaging

• ✔️ Rear-facing quintuple nosepiece with ball bearings and positive click stops for precise parcentration

• ✔️ Rackless double-layer mechanical stage (210 × 170 mm) with ceramic insert for smooth motion and protection

• ✔️ X–Y travel range: 78 × 51 mm for precise specimen navigation

• ✔️ Coaxial coarse and fine focus controls with tension adjustment and upper limit stop to prevent slide damage

• ✔️ Abbe N.A. 1.25 condenser with iris diaphragm for optimal illumination control

• ✔️ 3 W LED light source with variable intensity, rated for over 25,000 hours of continuous use

• ✔️ Field iris and built-in 5 V USB port for powering auxiliary devices

• ✔️ Internal universal power supply (110–240 V AC) for global use

• ✔️ Compact, durable design ideal for professional and educational labs

• ✔️ Includes dust cover, power cord, and immersion oil

📊 Technical Specifications

⚠️ Safety Notice

Before operation, ensure the microscope is placed on a stable, level surface. Connect only to a 110–240 V AC power source using the supplied cord. Avoid touching optical components with bare fingers—use lens paper for cleaning. Disconnect power before performing maintenance. Follow Accu-Scope® EXC-360-BE operational and cleaning guidelines to ensure safety and longevity.
