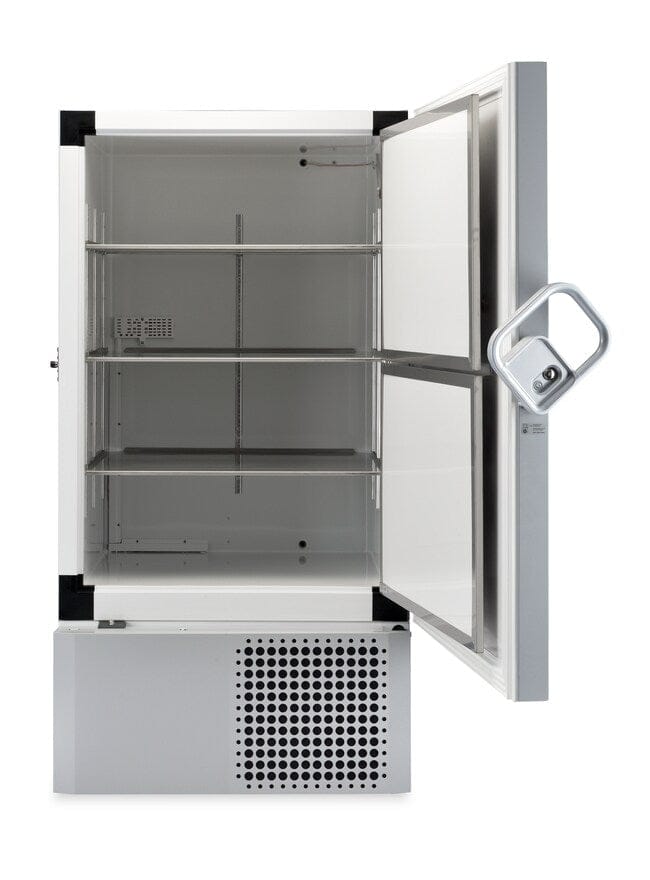

Thermo Scientific™ TSX Series Ultra-Low Freezer – 28.8 cu. ft.

The Thermo Scientific™ TSX60086FABP Ultra-Low Freezer delivers exceptional sample protection, energy efficiency, and intelligent performance for laboratories that require high-capacity ULT storage. With 28.8 cu. ft. of space and a high-density footprint, this freezer is designed for large sample inventories while maintaining industry-leading temperature stability between –40°C and –86°C.

Equipped with a full 7-inch capacitive touchscreen, event and temperature logging, and onboard diagnostics, the TSX Series provides intuitive monitoring and control. The two inner doors minimize cold air loss, while vacuum insulation panels, a 7-point gasket design, and automatic pressure relief ensure rapid recovery and consistent performance.

Durability is enhanced with stainless steel interiors, a cold-rolled steel cabinet, and an advanced frost management system. This model supports hundreds of racking configurations and includes extensive security and monitoring features. A 5-year warranty (plus 12 years on compressor parts) ensures long-term reliability.

✅ Key Features

• ✔️ 28.8 cu. ft. extra-large ULT capacity

• ✔️ Ultra-low –40°C to –86°C temperature range

• ✔️ 1 outer door + 2 insulated inner doors to reduce temperature loss

• ✔️ Full 7-inch capacitive touchscreen for precise control

• ✔️ Adjustable shelving for flexible storage configuration

• ✔️ Stainless steel interior + cold rolled steel cabinet

• ✔️ Vacuum insulation panels (VIP) for superior energy efficiency

• ✔️ 7-point gasket system for tight door sealing and frost reduction

• ✔️ Automatic pressure relief for easier door opening

• ✔️ Event & temperature logs, onboard diagnostics (optional)

• ✔️ Supports hundreds of racking options

• ✔️ Multiple access ports for probes and monitoring devices

• ✔️ 5-year full warranty, 12-year compressor parts warranty

📊 Technical Specifications

⚠️ Safety Notice

Install the freezer on a level surface with appropriate ventilation to support temperature stability and insulation performance. Avoid prolonged door openings and ensure the inner doors remain closed during sample access to prevent temperature spikes. Monitor the touchscreen’s event and temperature logs regularly, and keep alarms enabled. Use proper frost management procedures and follow Thermo Scientific’s maintenance recommendations. Disconnect power before servicing or cleaning.
